9060FR

Self-Adhesive
Breathable Membrane

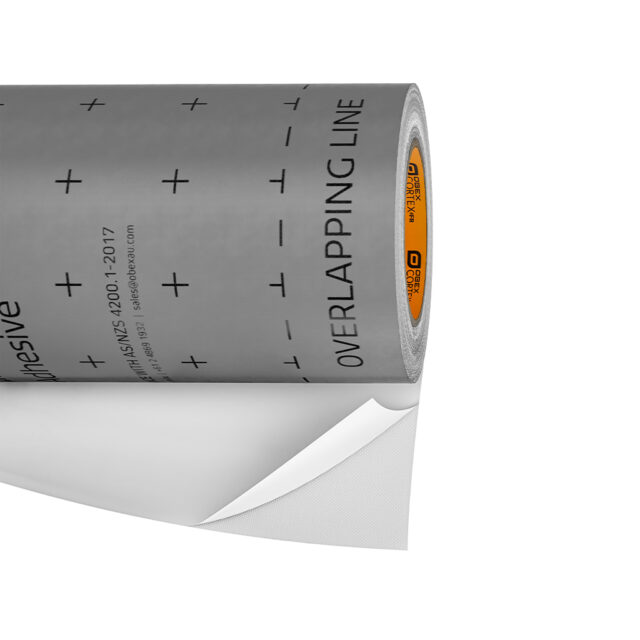

OBEX CORTEX 9060FR Self-Adhesive Breather Membrane provides a weather-resistant, air- and dust-tight barrier for walls and roofs, helping to protect the building envelope from external elements. While shielding the structure from wind and rain, the membrane remains vapour-permeable—allowing moisture to escape and reducing the risk of condensation and mould growth. Highly UV-resistant, Cortex 9060 can be left exposed for up to six months, offering flexibility during the construction schedule.

Key Features:

  • Adhesive backed for easy application

  • 6 months UV Resistance

  • Part of the OBEX CORTEX Membrane System

  • 3rd Party Certified 3rd Party Certified
  • 3 Months Exposure 3 Months Exposure
  • Breathable Breathable
Enquire Now

Technical Documents

Technical Data Sheet

Safety Data Sheet

Product Description

OBEX CORTEX 9060FR Self-Adhesive Breather Membrane provides a weather-resistant, air- and dust-tight barrier for walls and roofs, helping to protect the building envelope from external elements. While shielding the structure from wind and rain, the membrane remains vapour-permeable—allowing moisture to escape and reducing the risk of condensation and mould growth. Highly UV-resistant, Cortex 9060 can be left exposed for up to six months, offering flexibility during the construction schedule.

Key Features:

  • Adhesive backed for easy application

  • 6 months UV Resistance

  • Part of the OBEX CORTEX Membrane System

Product Specs

Size

1500 x 30m

Thickness

0.4mm

Colour

Grey

Mass Per Unit Area

180/m2

Technical Specs

Resistance to Dry Delamination | AS/NZS 4201.1-1994

Pass

Resistance to Dry Delamination | AS/NZS 4201.2-1994

Pass

Shrinkage | AS/NZS 4201.3-1994

0.10%

Tensile Strength (mean) | AS 1301.448s-2019

MD – 4.3 kN/m
LD – 2.6 kN/m

Duty Classification

Light wall

Edge Tear Resistance (mean) | AS/NZS 4200.1-2017 Clause 5.3.2.3

MD – 218 N
LD – 140 N

Duty Classification

Extra Heavy

Bursting Force (mean) | AS 2001.2.19-1988

283 N

Emittance | AS/NZS 4201.5.1994

IR Non-Reflective

Water Vapour Transmission | ASTM E96-2016

2.0 MN.s/g, Class 3

Resistance to Water Penetration | AS/NZS 4201.4-1994

Water Barrier (Pass)

Surface Resistivity | AS/NZS 3100-2017

Electrically Non-Conductive

Flammability Index | AS 1530.2-1993

0

Climate Zone

UV resistance (prior to overcladding)

6 Months

Warranty

12 years
