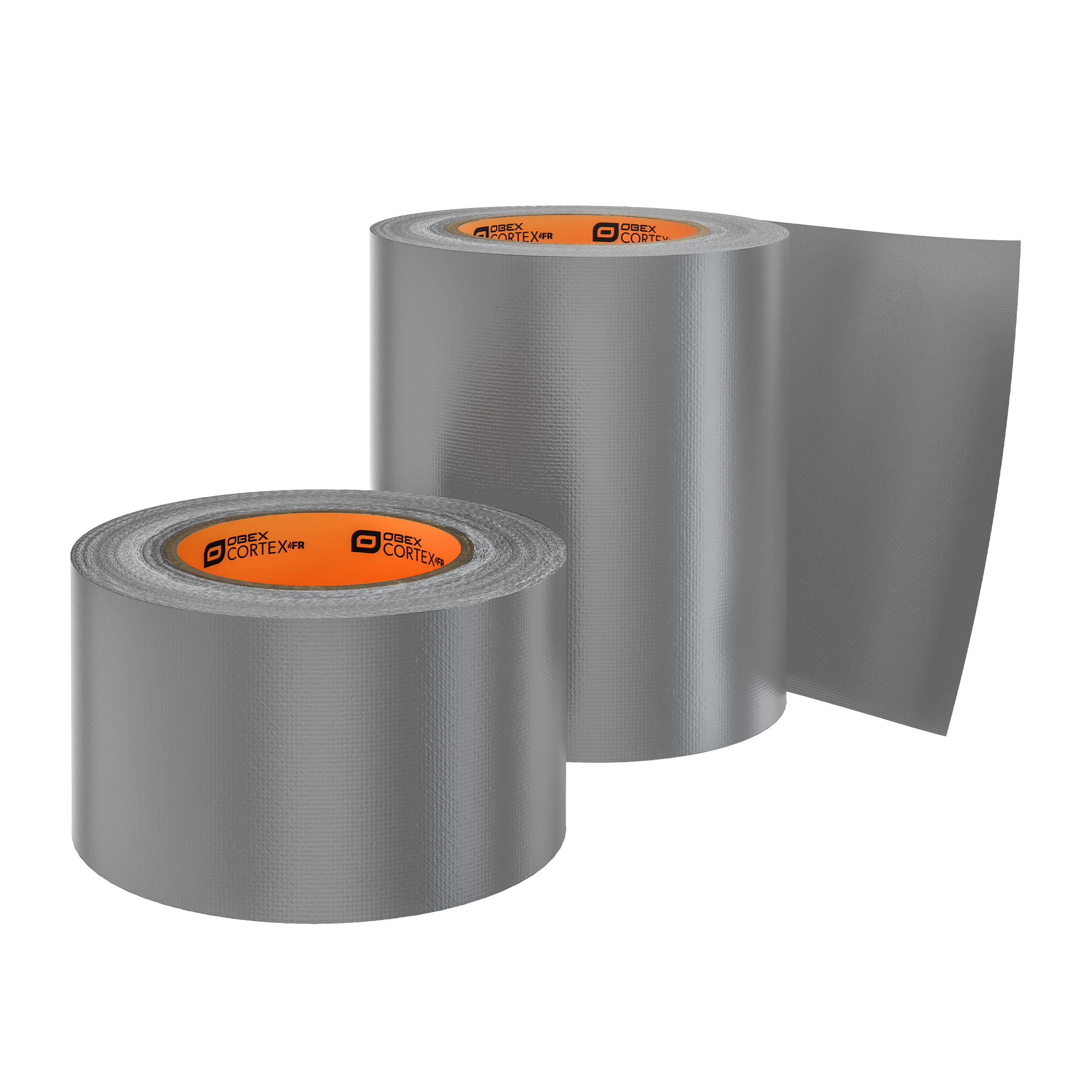

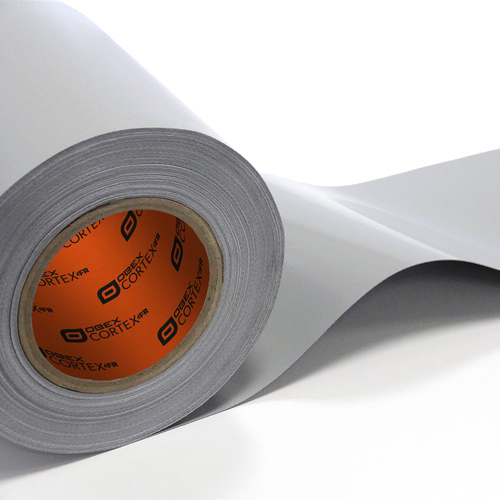

0100FR
DPC Membrane
Class B – EN 13501-1
OBEX CORTEX 0100FR DPC Membrane is a Class B fire classified cavity barrier designed to meet the most demanding applications. As an industry-first, this remarkable DPC membrane achieves a minimum fire classification of Class B-s3, d0, setting a new standard in safety and reliability.
Engineered to be 100% resistant to water penetration, the OBEX CORTEX 0100FR DPC Membrane is perfect for external wall applications, such as cavity barriers, where a DPC separation layer is required. Its exceptional durability, combined with high impact resistance, ensures long-lasting performance even in the toughest conditions.
Experience the ease of working with this fully flexible and workable membrane that conforms to EN 14909 standards. Its high heat and alkali resistance make it an ideal choice for a wide range of applications. To complete the system, the OBEX CORTEX 0100FR DPC Membrane comes with a Class B compatible paste adhesive, ensuring secure and lasting adhesion.
Request Technical Data
- Class B
- EN 1928 - EN 14909
Product Description
OBEX CORTEX 0100FR DPC Membrane is a Class B fire classified cavity barrier designed to meet the most demanding applications. As an industry-first, this remarkable DPC membrane achieves a minimum fire classification of Class B-s3, d0, setting a new standard in safety and reliability.
Engineered to be 100% resistant to water penetration, the OBEX CORTEX 0100FR DPC Membrane is perfect for external wall applications, such as cavity barriers, where a DPC separation layer is required. Its exceptional durability, combined with high impact resistance, ensures long-lasting performance even in the toughest conditions.
Experience the ease of working with this fully flexible and workable membrane that conforms to EN 14909 standards. Its high heat and alkali resistance make it an ideal choice for a wide range of applications. To complete the system, the OBEX CORTEX 0100FR DPC Membrane comes with a Class B compatible paste adhesive, ensuring secure and lasting adhesion.
Request Technical Data
Product Specs
Width
50-1500mm
Length
20m
Thickness
0.5mm
Technical Specs
Harmonised Standard |
EN 14909
Fire Classification | EN 13501-1
B-s3,d0
Tensile Strength | EN 12311-2
2300 / 2500 N/50mm
Tear Strength | EN 12310-2
264 / 405 N/mm
Watertightness | EN 1928
Pass - 2kPa for 24hrs
Cold Temperature Flexibility | EN 495 - 5
-40°C – no cracks
Product Order Codes
Product Codes | Product Description | Width | Length | Box Quantity |
---|---|---|---|---|
20.0100.003 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 50mm | 20m | 1 |
20.0100.004 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 100mm | 20m | 1 |
20.0100.002 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 150mm | 20m | 1 |
20.0100.016 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 200mm | 20m | 1 |
20.0100.007 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 250mm | 20m | 1 |
20.0100.010 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 300mm | 20m | 1 |
20.0100.013 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 350mm | 20m | 1 |
20.0100.020 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 400mm | 20m | 1 |
20.0100.011 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 450mm | 20m | 1 |
20.0100.006 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 500mm | 20m | 1 |
20.0100.021 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 550mm | 20m | 1 |
20.0100.009 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 600mm | 20m | 1 |
20.0100.022 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 650mm | 20m | 1 |
20.0100.014 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 700mm | 20m | 1 |
20.0100.015 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 750mm | 20m | 1 |
20.0100.017 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 800mm | 20m | 1 |
20.0100.023 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 850mm | 20m | 1 |
20.0100.024 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 900mm | 20m | 1 |
20.0100.025 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 950mm | 20m | 1 |
20.0100.019 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 1000mm | 20m | 1 |
20.0100.026 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 1050mm | 20m | 1 |
20.0100.027 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 1100mm | 20m | 1 |
20.0100.028 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 1150mm | 20m | 1 |
20.0100.029 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 1200mm | 20m | 1 |
20.0100.030 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 1250mm | 20m | 1 |
20.0100.031 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 1300mm | 20m | 1 |
20.0100.032 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 1350mm | 20m | 1 |
20.0100.033 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 1400mm | 20m | 1 |
20.0100.034 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 1450mm | 20m | 1 |
20.0100.005 | OBEX CORTEX 0100FR DPC Membrane - Class B-s3,d0 | 1500mm | 20m | 1 |
