0223FR

Breather Membrane
W1

Class A - EN 13501-1

A UV-resistant external breather membrane for use in facades and other construction applications.  It is a water resistant, yet breathable membrane which facilitates the escape of moisture and the prevention of condensation within the external wall construction and can be applied to many surfaces such as sheathing board, concrete and insulation.  Read more

  • 3rd Party Certified 3rd Party Certified
  • 12 Months Exposure 12 Months Exposure
  • Class A Class A
  • EI60 Certified EI60 Fire Test Component
  • EI120 Certified EI120 Fire Test Component
  • Breathable Breathable
  • W1 - EN 13859-2 W1 - EN 13859-2
Request a quote

Full Product Description

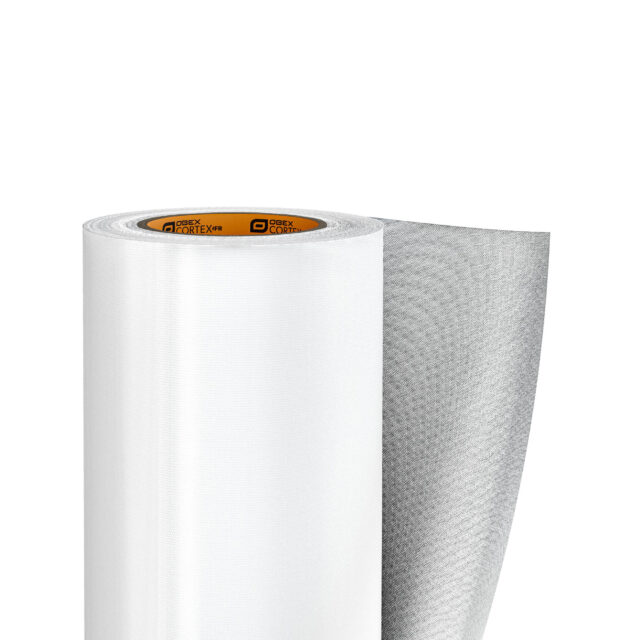

OBEX CORTEX 0223FR Class A2 Breather Membrane is a UV-resistant external breather membrane for use in facades and other construction applications.  It is a water resistant, yet breathable membrane which facilitates the escape of moisture and the prevention of condensation within the external wall construction and can be applied to many surfaces such as sheathing board, concrete and insulation.

This specialist breather membrane has a watertightness rating of W1 and is therefore especially suited to demanding applications such as Modular construction where the highest levels of water resistance are required and also achieves a fire classification of A2-s1,d0 according to EN 13501-1.

The membrane is installed using the OBEX CORTEX 0825 Installation Kit which includes 2 rolls of 0824FR Double-Sided Tape and 6 rolls of single sided 0823FR UV Façade Tape.

Typical Uses

  • Class A2 external breather membrane for use in facades and other construction applications

Product Specs

Width

1200mm

Length

35m

Thickness

0.4mm

Colour

Silver Foil & White

Technical Specs

Harmonised Standard

EN 13859-2

Fire Classification | EN 13501-1

A2-s1,d0

Watertightness | EN 1928

W1

Sd Value | EN ISO 12572

0.08m

Tensile Strength | EN 12311-2

Longitudinal – 2968 N/50mm, Transversal 3253 N/50mm

3rd Party Approved

KIWA Approval – BAW-22-261-P-A-UK

UV Resistance

12 Months UV Resistance

Downloads

OBEX CORTEX 0223FR Breather Membrane Installation Guide

Product Order Codes

Product CodesProduct DescriptionWidthLengthBox Quantity
20.0223.002OBEX CORTEX 0223FR Breather Membrane - Class A2-s2,d0 / W11200mm35m1
