0230FR
VCL Membrane
Class A - EN 13501-1
A VCL membrane that has excellent air and vapour-tightness properties which make it ideally suited to improving the airtightness, moisture management and energy efficiency of buildings. Read more
-
3rd Party Certified
-
Class A
-
EI60 Fire Test Component
-
EI120 Fire Test Component
-
EN 1928 - EN 13984
Full Product Description

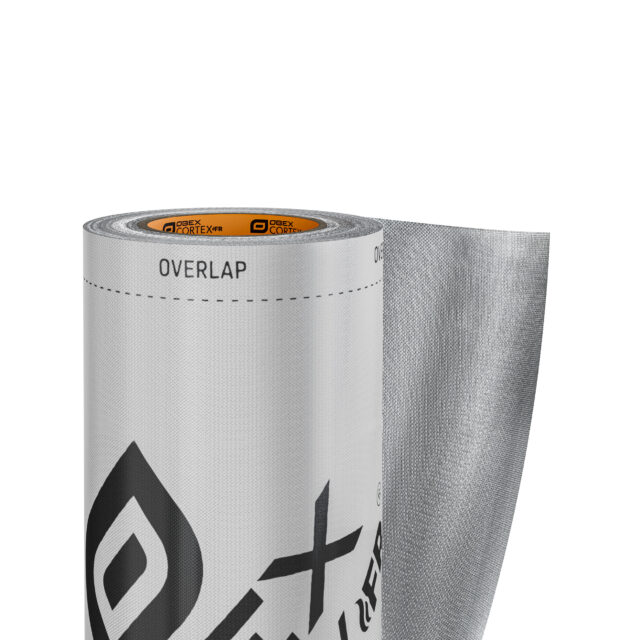

OBEX CORTEX 0230FR Class A2 VCL membrane has excellent air and vapour-tightness properties which make it ideally suited to improving the airtightness, moisture management and energy efficiency of buildings.
It is installed on the warm side of the insulation and provides an air and vapour-tight barrier, preventing warm air and moisture from passing through the external wall and forming interstitial or surface condensation within the cavity.
The VCL Membrane is normally bonded to the steel framing with OBEX CORTEX Double-Sided Tape before the plasterboard layer is applied. Applications may vary depending on the construction build up. The OBEX Technical team can help with any application queries.
The membrane is installed using the CORTEX 0825 Installation Kit which includes 2 rolls of CORTEX 0824FR Double-Sided Tape and 6 rolls of single sided CORTEX 0823FR UV Façade Tape.
Typical Uses
- Class A2 VCL membrane for use as an internal Vapour Control Layer.
Product Specs
Width
1200mm
Length
50m
Thickness
0.2mm
Colour
Silver face
Technical Specs
Harmonised Standard
EN 13984
3rd Party Certification
KIWA - BAW-22-246-P-A-UK
Fire Classification | EN 13501-1
A2-s1,d0
Watertightness | EN 1928
Pass – 2 kPa for 24 hours
Sd value | EN 1931
2575.35m
Tensile Strength | EN 12311-2
Longitudinal – 1362 N/50mm, Transversel - 1349 N/50mm
Downloads
OBEX CORTEX 0230FR VCL Membrane Installation Guide
Product Order Codes
| Product Codes | Product Description | Width | Length | Box Quantity |
|---|---|---|---|---|
| 20.0230.023 | OBEX CORTEX 0230FR Vapour Control Layer - Class A2-s2,d0 / W1 | 1200mm | 50m | 1 |
