Board Jointing Tape

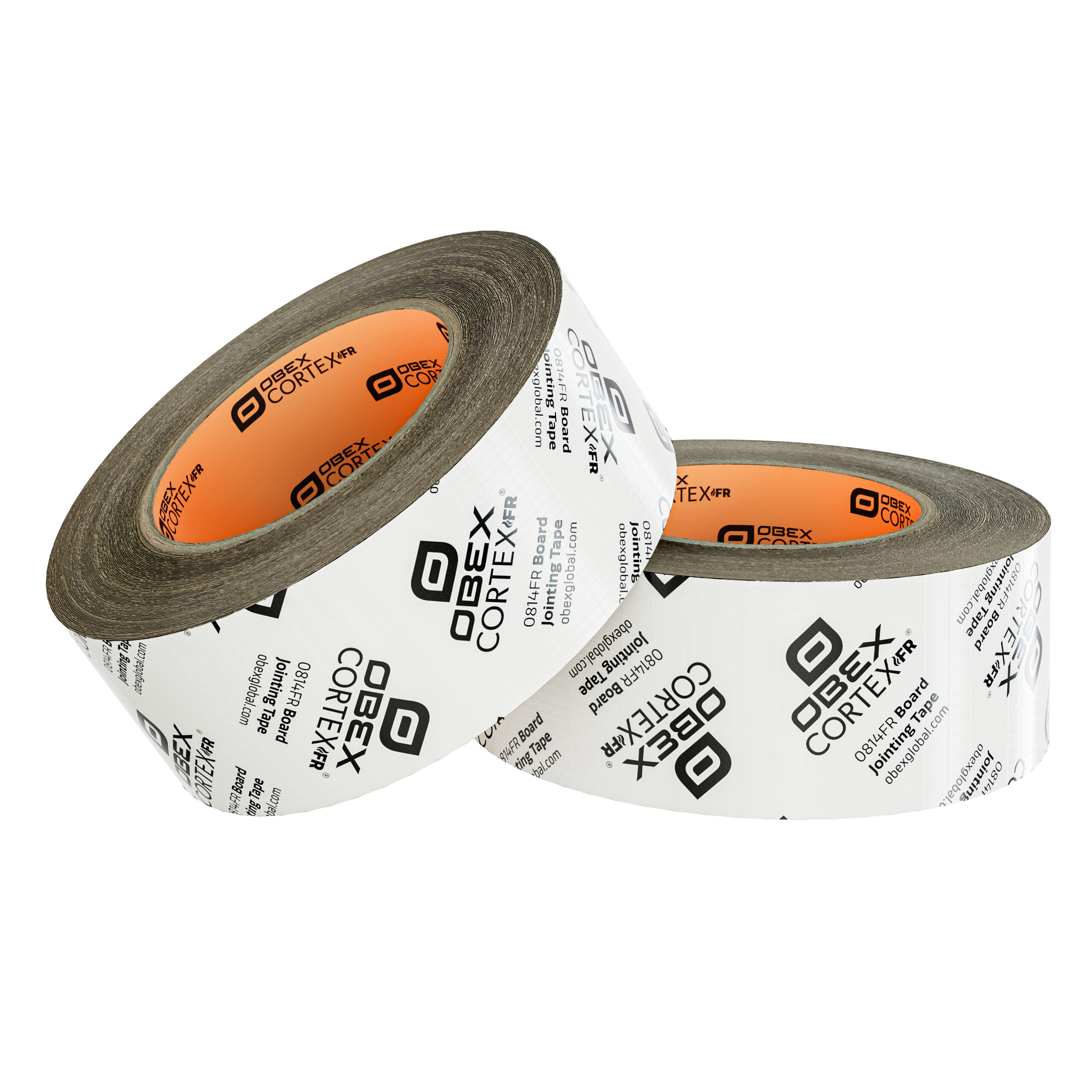

OBEX CORTEX 0814FR Board Jointing Tape is a single-sided adhesive tape used for sealing the joints between sheathing boards.  This tape has been specifically developed for use on surfaces such as Cement board, Calcium Silicate board, Gypsum board and many other surfaces.  It is reinforced with scrim to ensure maximum strength and durability across the lifetime of the bond.

OBEX CORTEX 0814FR is highly resistant to both high and low temperature extremes, as well as exposure to UV and remains flexible across the lifetime of the product.  The unique acrylic dispersion adhesive maintains a high level of performance during exposure to moisture, increasing the lifetime of the seal, especially for construction materials subject to expansion and contraction.

Typical Uses

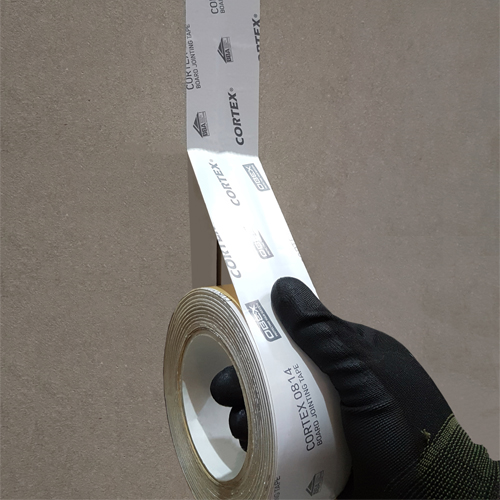

  • Taping joints on sheathing board installations

Request Technical Data

  • 3rd Party Certified 3rd Party Certified
  • EI60 Certified EI60 Fire Test Component
Request a quote

Product Specs

Standard Widths

50mm, 60mm, 75mm, 100mm & 150mm wide



Application Temperature

+5°C recommended

Technical Specs

UV Resistance

2 Years

Temperature Resistance

-30 to +100°C


OBEX CORTEX KIWA-cert-BAW-22-254-P-A-UK-Cortex-0270-Board.pdf

OBEX CORTEX BBA Agrément Certificate 175396

OBEX CORTEX 0814FR Board Jointing Tape TDS

OBEX CORTEX 0814FR Board Jointing Tape SDS

To access these downloads please log in to OBEX OPTIMA

Product Order Codes

Product CodesProduct DescriptionWidthLengthBox Quantity
10.0814.003OBEX CORTEX 0814FR Board Jointing Tape50mm25m24 rolls
10.0814.005OBEX CORTEX 0814FR Board Jointing Tape60mm25m20 rolls
10.0814.015OBEX CORTEX 0814FR Board Jointing Tape150mm25m8 rolls
10.0814.004OBEX CORTEX 0814FR Board Jointing Tape - Black50mm25m24 rolls
10.0814.006OBEX CORTEX 0814FR Board Jointing Tape - Black60mm25m20 rolls
10.0814.016OBEX CORTEX 0814FR Board Jointing Tape - Black150mm25m8 rolls

Request a Quote
