0250FR
Rail Blackout Tape
Class A - EN 13501-1
Blackout tape designed to conceal metal support rails. Read more
-
Class A
-
W1 - EN 13859-2
Product Description

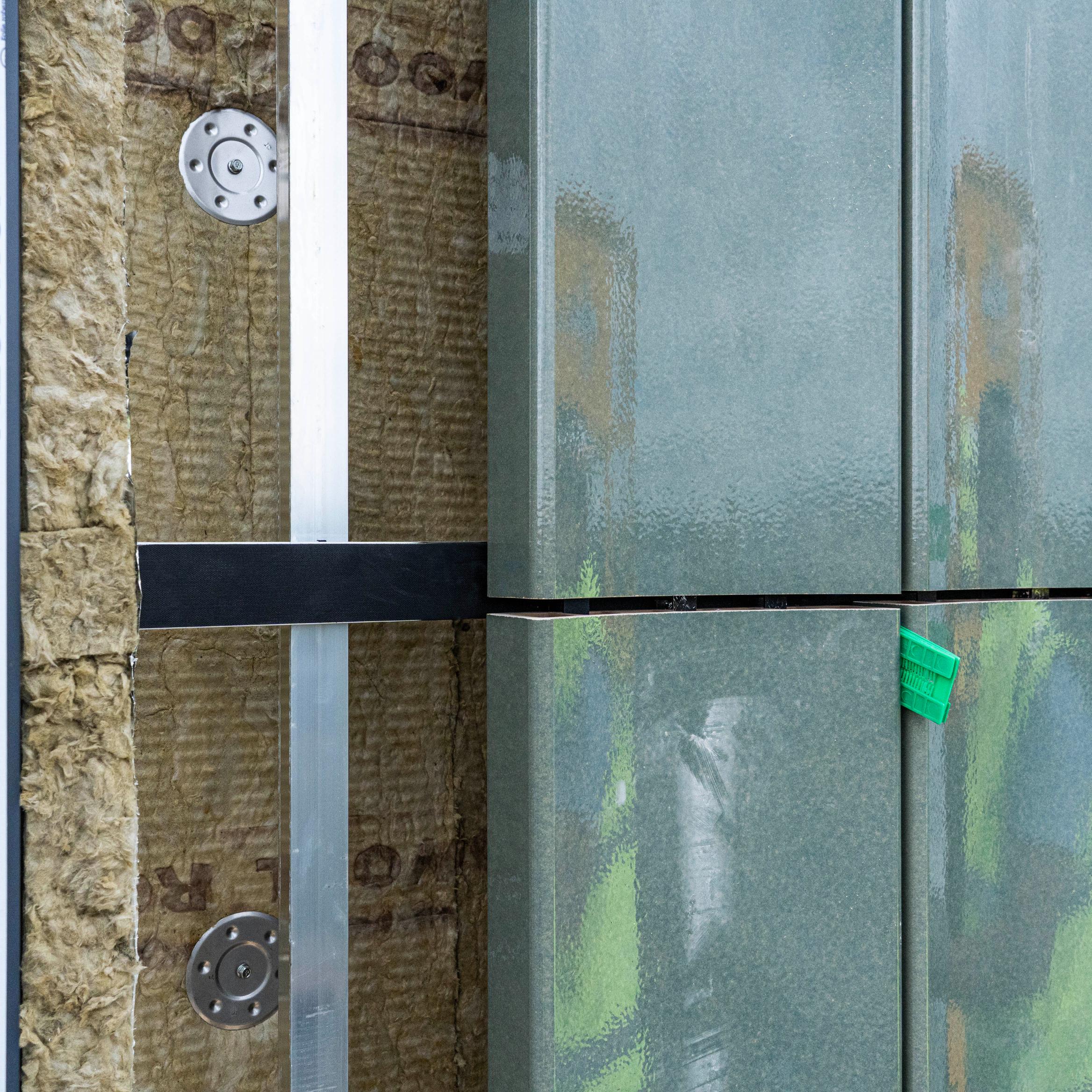

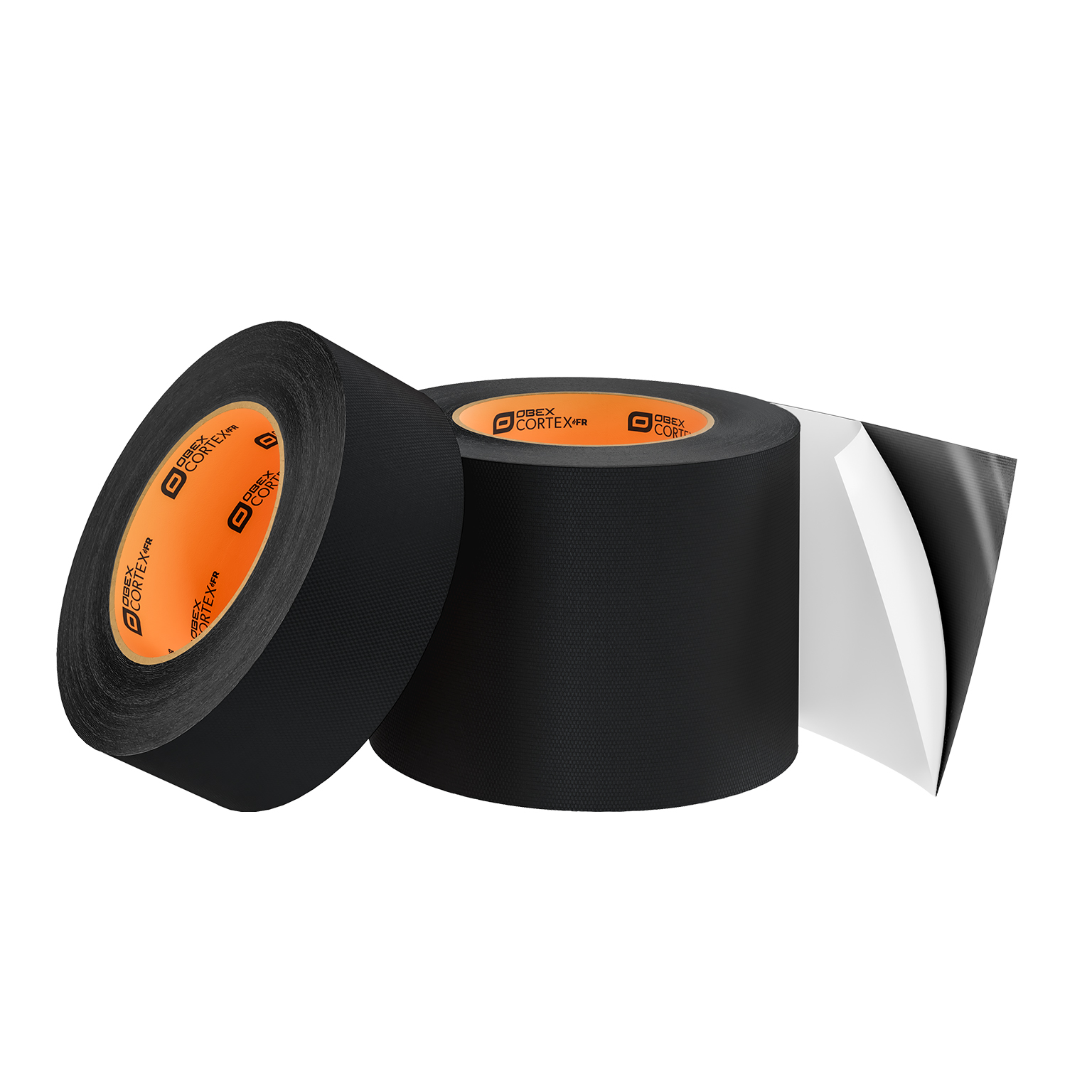

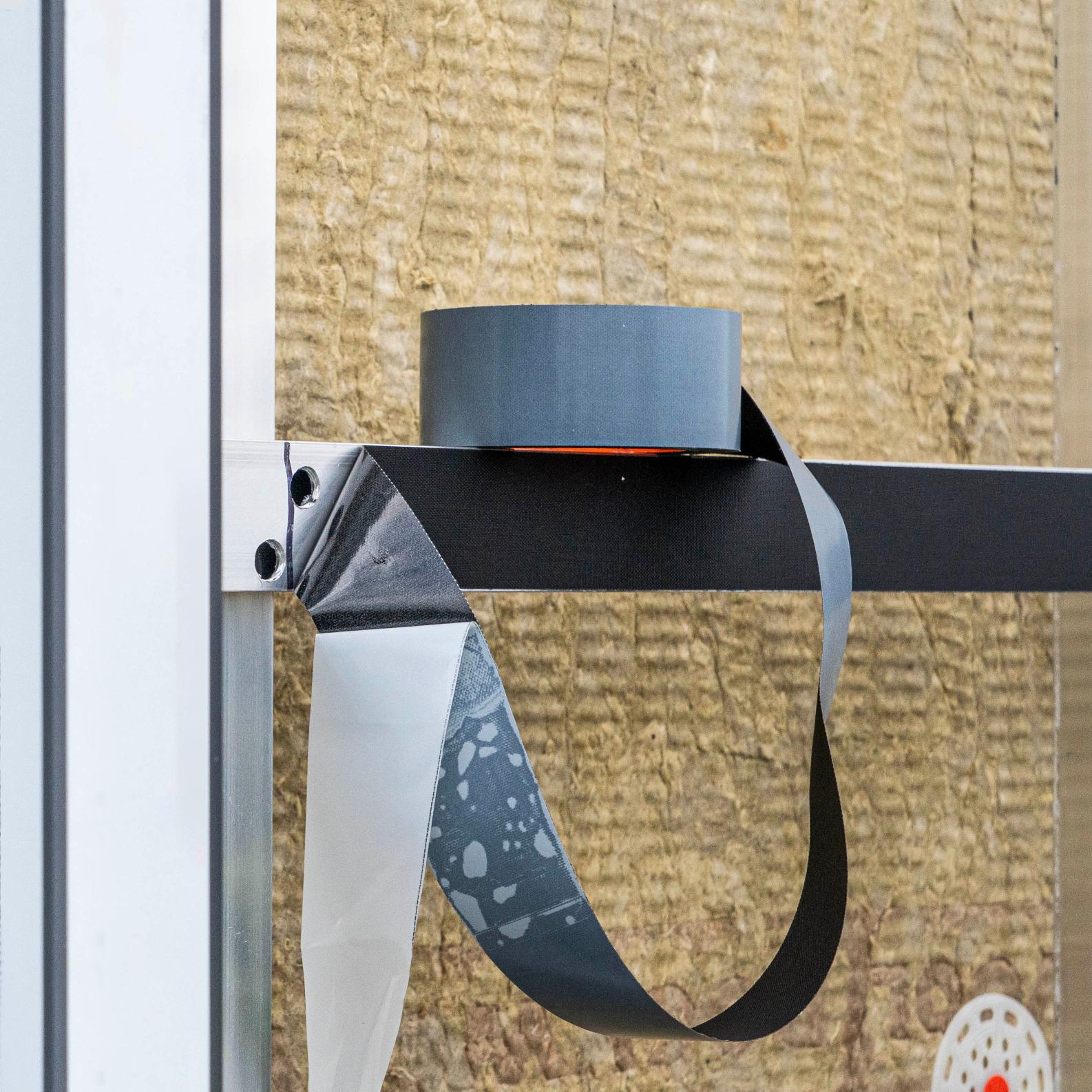

OBEX CORTEX 0250FR is a self-adhesive blackout tape designed to conceal metal support rails in cladding and decking systems. Fire classified to Class A2-s1,d0* (EN 13501-1) it ensures compliance with ADB for the external façade to be minimum A2-s1,d0 fire classification. Tested to withstand 5,000+ hours of UV exposure with no fading or degradation, 0250FR delivers long-lasting durability and a clean, uniform finish in exposed applications.
Product Specs
Widths
30-1000mm
Length
25m
Thickness
0.3mm (excluding liner)
Packaging
Individual or 24 per box at 50mm wide
Technical Specs
Fire Classification | EN 13501-1
A2-s1,d0
Water-Tightness | EN 1928
W1 – 2kPa for 2 hours
UV Resistance
Permanent
Tensile Strength | EN 12311-2
MD: 3828 N/50mm XD: 1992 N/50mm
Tear Strength (Nail Shank) | EN 12310-1
MD: 356 N XD: 424 N
Low-Temperature Flexibility | EN 1109
-40°C
Peel Adhesion Before Ageing | EN 12376-2
36 N
Peel Adhesion After 5000 hours UV Ageing | EN 12316-2
41 N
