0243FR

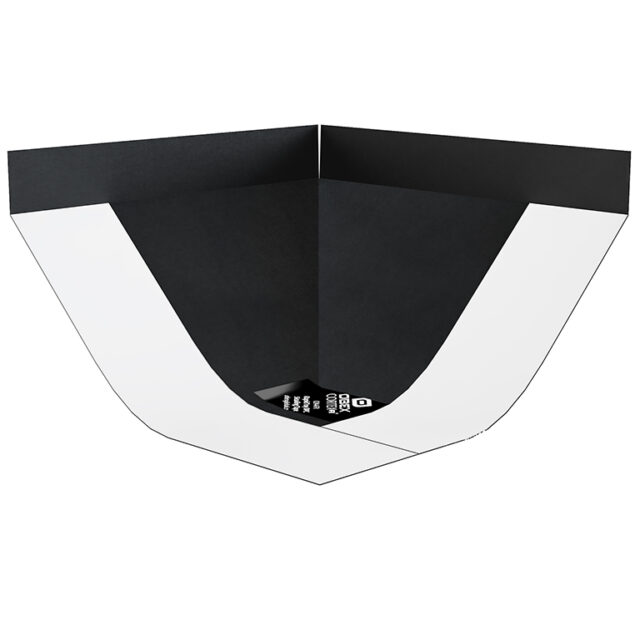

RapidTray Internal Pre-Formed Corners
OBEX CORTEX 0243FR RapidTray Internal Pre-Formed Corners are factory-made from the 0240FR RapidTray DPC Membrane. Designed for cavity widths from 50mm to 1000mm in 50mm increments (e.g., 50–100mm, 100–150mm), each unit features a 50mm vertical fixing flange, a 150mm vertical rise across the cavity, and 150mm extension past the apex of the corner.
The corners are surface-fixed to the inner leaf using pre-applied double-sided tape on the rear of the fixing flange, with a 100mm overlap flange also pre-taped to ensure fast and efficient installation. The 0241FR RapidTray Cavity Tray System runs over the 0242FR corner as per the installation guidelines.
An ’XL’ version is also provided with a 600mm flange extension past the apex of the corner (available up to a maximum cavity width of 1300mm). Custom corner sizes and configurations are available, please direct any requests to the sales team.
OBEX CORTEX 0243FR RapidTray Internal Pre-Formed Corners are factory-made from the 0240FR RapidTray DPC Membrane. Designed for cavity widths from 50mm to 1000mm in 50mm increments (e.g., 50–100mm, 100–150mm), each unit features a 50mm vertical fixing flange, a 150mm vertical rise across the cavity, and 150mm extension past the apex of the corner.
The corners are surface-fixed to the inner leaf using pre-applied double-sided tape on the rear of the fixing flange, with a 100mm overlap flange also pre-taped to ensure fast and efficient installation. The 0241FR RapidTray Cavity Tray System runs over the 0242FR corner as per the installation guidelines.
An ’XL’ version is also provided with a 600mm flange extension past the apex of the corner (available up to a maximum cavity width of 1300mm). Custom corner sizes and configurations are available, please direct any requests to the sales team.
Size
From 50mm – 1000mm Cavity Widths (Cavity width is measured from the sheathing board to cavity face of outer masonry leaf)
Thickness
0.4mm
Colours
Black / White (installed black side facing up)
Packaging
5no per bag
Harmonised standard | EN 14909
Fire Classification | EN 13501-1
A2-s1,d0
Watertightness | EN 1928
Pass - 2kPa for 24 hours
Joint Strength | EN 12317-2
611 N / 50mm
Joint Strength After Ageing | EN 12317-2 / EN 1296
526 N / 50mm
Resistance To Impact | EN 12691
Pass - 1000mm
Resistance to Low Temperature | EN 495-5
-20°C - +20°C – Pass
Tear Resistance | EN 12310-1
156 N
Water Vapour Transmission | EN 1931
27009 µ
Sd value | EN 1931
10.8 m
Resistance To Static Loading | EN 14909 Annex B
Pass - 20kg
