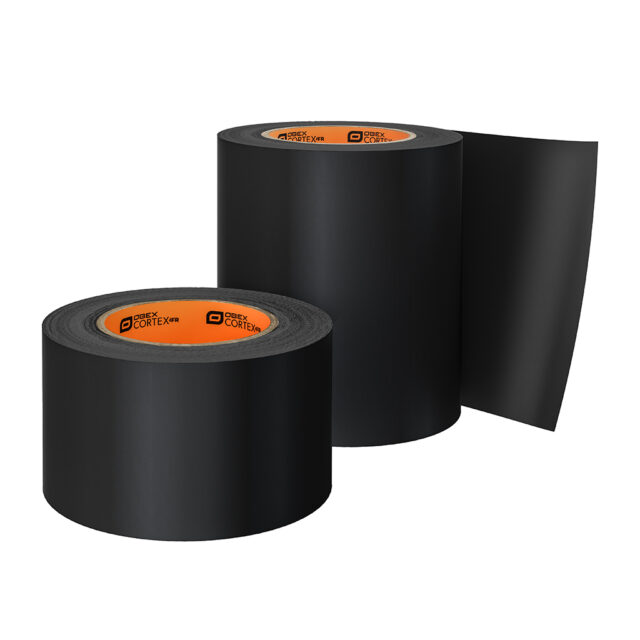

0240FR Packshot TwoRolls 01

0240FR

RapidTray DPC

Class A - EN 13501-1

The next generation DPC & Cavity Tray System that delivers uncompromising performance and rapid installation. Read More

  • 6 Months Exposure 6 Months Exposure
  • Class A Class A
  • EN 1928 - EN 14909 EN 1928 - EN 14909
Enquire Now

OBEX CORTEX 0240FR RapidTray DPC System - TDS

View

OBEX CORTEX 0240FR RapidTray DPC System - SDS

View

OBEX CORTEX 0240FR RapidTray DPC System - DoP

View

OBEX CORTEX 0240FR RapidTray DPC System - Install Guide

View

OBEX CORTEX 0240FR RapidTray DPC System - KIWA Certificate

View

The OBEX 0240FR RapidTray system is a highly flexible and adaptable DPC solution, achieving a Class A2 fire classification. The product is also available in an alternative variant specifically for use as a cavity tray – 0241FR (See 0241FR TDS) – which has an integrated stainless steel fixing strip for faster and easier installation when used as a cavity tray system.

It has been designed and tested in accordance with British Standards with all overlap joints having a minimum of 100mm bond width adhered together with tapes rather than adhesives for a cleaner and more cost effective solution.

This Class A2 DPC is certified and approved for use with accompanying third party certification issued by KIWA BDA.  Athough it’s primary use is as a DPC, it is also fully certified for use as a cavity tray between two skins of masonry.

This product complies with Approved Document B, Regulation 7, Paragraph 2 – materials which become part of the external wall, or specified attachment, of a relevant building are of European Classification A2-s1,d0 or A1

Widths

50mm - 1500mm

Length

20m

Thickness

0.4mm

Colour

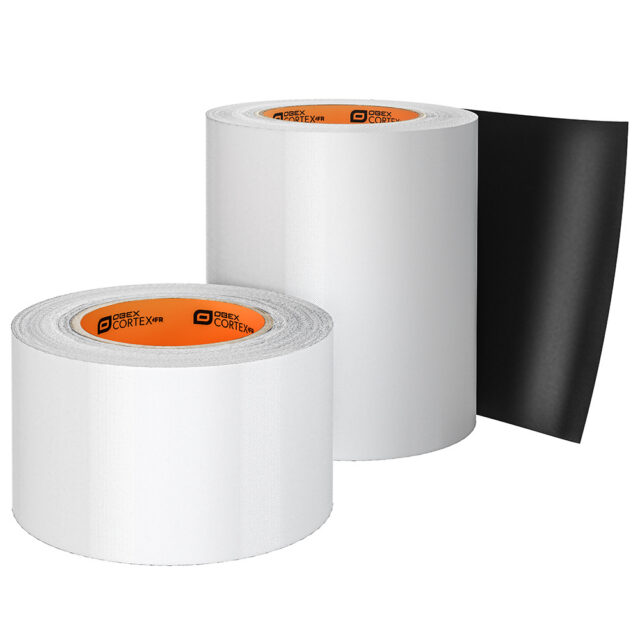

Black / White (installed black side up/ facing the direction of water penetration)

Packaging

Individual

Harmonised standard | EN 14909

Fire Classification | EN 13501-1

A2-s1,d0

Watertightness | EN 1928

Pass - 2kPa for 24 hours

Watertightness After Ageing | EN 1296 / EN 1928

Pass - 2kPa for 24 hours

Joint Strength | EN 12317-2

611 N / 50mm

Joint Strength After Ageing | EN 12317-2 / EN 1296

526 N / 50mm

Resistance To Impact | EN 12691

Pass - 1000mm

Resistance to Low Temperature | EN 495-5

-20°C - +20°C – Pass

Tear Resistance | EN 12310-1

156 N

Water Vapour Transmission | EN 1931

27009 μ

Sd value | EN 1931

10.8 m

Resistance To Static Loading | EN 14909 Annex B

Pass - 20kg

Durability Against Chemicals (Alkali) | EN 1847 / EN 1928

Pass – 2kPa for 24 hours

Characteristic Initial Shear Strength of Masonry Wall Incorporating RapidTray | EN 1052-4

0.11 N/mm²

Characteristic Flexural Strength of Masonry Wall Incorporating RapidTray | DD 86-1

0.02 N/mm²

Deformation Under Load | EN 14909

0mm

UV Exposure | ISO 4829-3 / EN 1928

6 Months
