0241FR
RapidTray Cavity Tray System
Class A - EN 13501-1
The next generation DPC & Cavity Tray System that delivers uncompromising performance and rapid installation. Read More
-
6 Months Exposure
-
Class A
-
EN 1928 - EN 14909
OBEX CORTEX 0241FR RapidTray Cavity Tray System - TDS
OBEX CORTEX 0241FR RapidTray Cavity Tray System - SDS
OBEX CORTEX 0241FR RapidTray Cavity Tray System - DoP
OBEX CORTEX 0241FR RapidTray Cavity Tray System - Install Guide
OBEX CORTEX 0241FR RapidTray Cavity Tray System - Kiwa Certificate

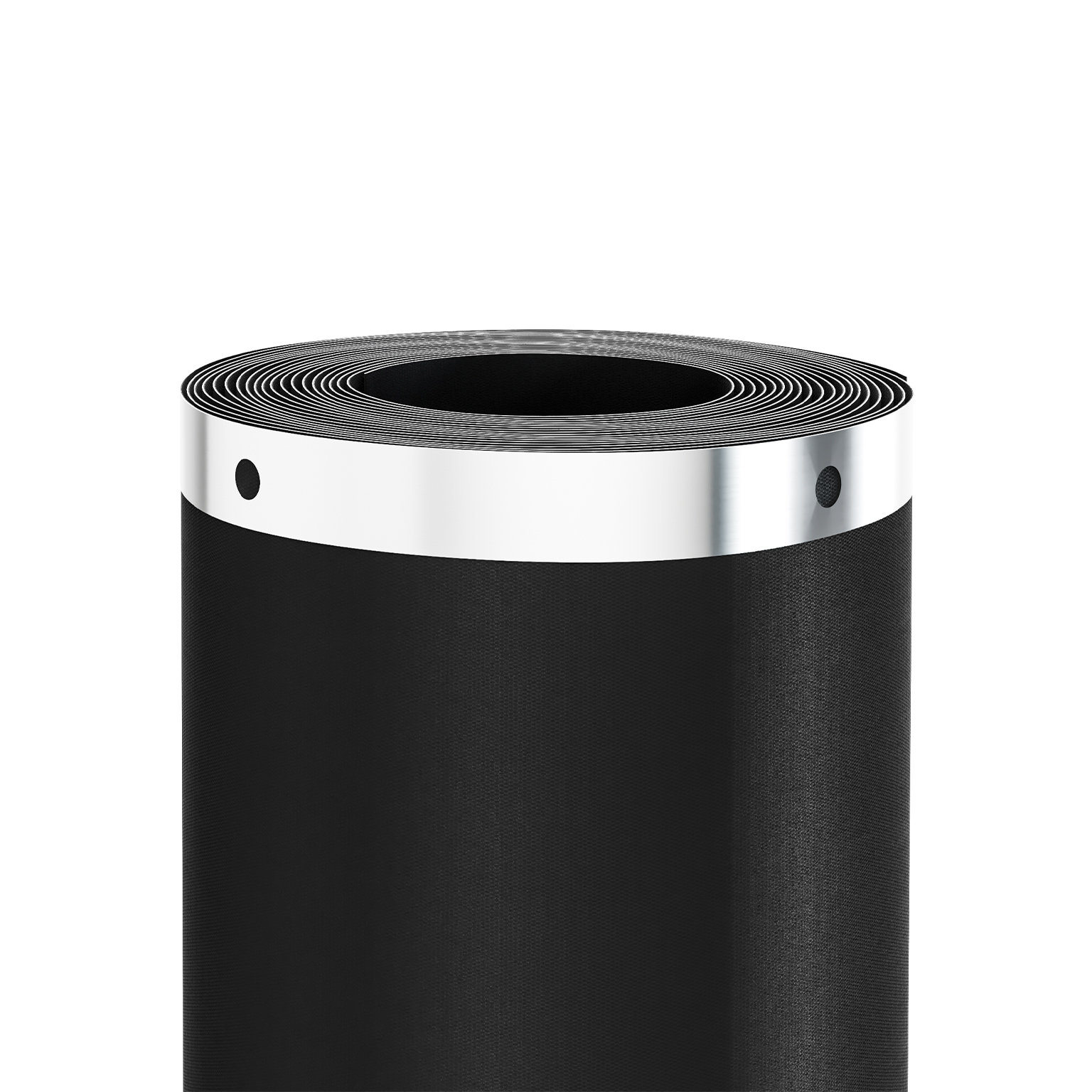

The OBEX 0241FR RapidTray system is a highly flexible and adaptable cavity tray system, achieving Class A2 fire classification. The membrane incorporates an integrated stainless steel fixing strip, with pre-drilled holes at 150mm centres for faster and easier installation.
For Masonry DPC, Fire Barrier DPC and Cavity Tray applications where both sides of the tray are built into the masonry, the 0240FR version, which has no fixing strip, is used.
RapidTray has been designed and tested in accordance with British Standards, with all overlap joints having a minimum of 100mm bond width adhered together with tapes rather than adhesives for a cleaner and more cost-effective solution.

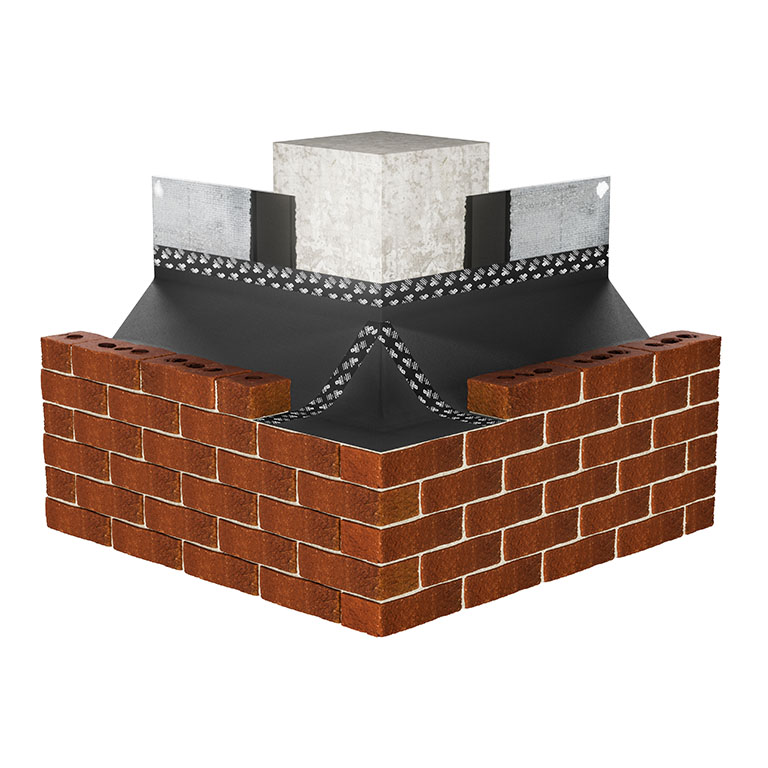

Independently water-flow tested by the BBA and achieving Agrement certification by KIWA BDA, RapidTray sets a new benchmark as the leading flexible cavity tray system on the market. The system is complete with pre-formed components such as external and internal corners. Bespoke shapes and parts are available upon request.
This product complies with Approved Document B Vol 1 & 2, Regulation 7, Paragraph 2 – materials which become part of the external wall, or specified attachment, of a relevant building are of European Classification A2-s1,d0 or A1.
Key System Benefits
- DRASTICALLY REDUCED INSTALLATION TIME – Integrated pre-drilled, stainless steel fixing strip
- EASE OF INSTALLATION – highly flexible, with pre-formed corner pieces to suit 50mm – 1000mm cavity sizes
- FULL REGULATORY COMPLIANCE – A2-s1,d0 fire classification (EN 13501-1) | 3rd Party KIWA Certified: BAW-25-404-P-A-UK | Independently water flow tested by the BBA
- FULLY COMPATIBLE WITH ADHERING TAPES – Non-silicone surfaces for excellent tape-bond
- DRY, CLEAN SYSTEM – No paste/mastic required (except for sealing to any silicone-based surfaces)
Widths
50mm - 1500mm
Length
20m
Thickness
0.4mm
Colour
Black / White (installed black side up/ facing the direction of water penetration)
Packaging
Individual
Harmonised standard | EN 14909
Fire Classification | EN 13501-1
A2-s1,d0
Watertightness | EN 1928
Pass - 2kPa for 24 hours
Watertightness After Ageing | EN 1296 / EN 1928
Pass - 2kPa for 24 hours
Joint Strength | EN 12317-2
611 N / 50mm
Joint Strength After Ageing | EN 12317-2 / EN 1296
526 N / 50mm
Resistance To Impact | EN 12691
Pass - 1000mm
Resistance to Low Temperature | EN 495-5
-20°C - +20°C – Pass
Tear Resistance | EN 12310-1
156 N
Water Vapour Transmission | EN 1931
27009 μ
Sd value | EN 1931
10.8 m
Resistance To Static Loading | EN 14909 Annex B
Pass - 20kg
Durability Against Chemicals (Alkali) | EN 1847 / EN 1928
Pass – 2kPa for 24 hours
Characteristic Initial Shear Strength of Masonry Wall Incorporating RapidTray | EN 1052-4
0.11 N/mm²
Characteristic Flexural Strength of Masonry Wall Incorporating RapidTray | DD 86-1
0.02 N/mm²
Deformation Under Load | EN 14909
0mm
UV Exposure | ISO 4829-3 / EN 1928
6 Months
