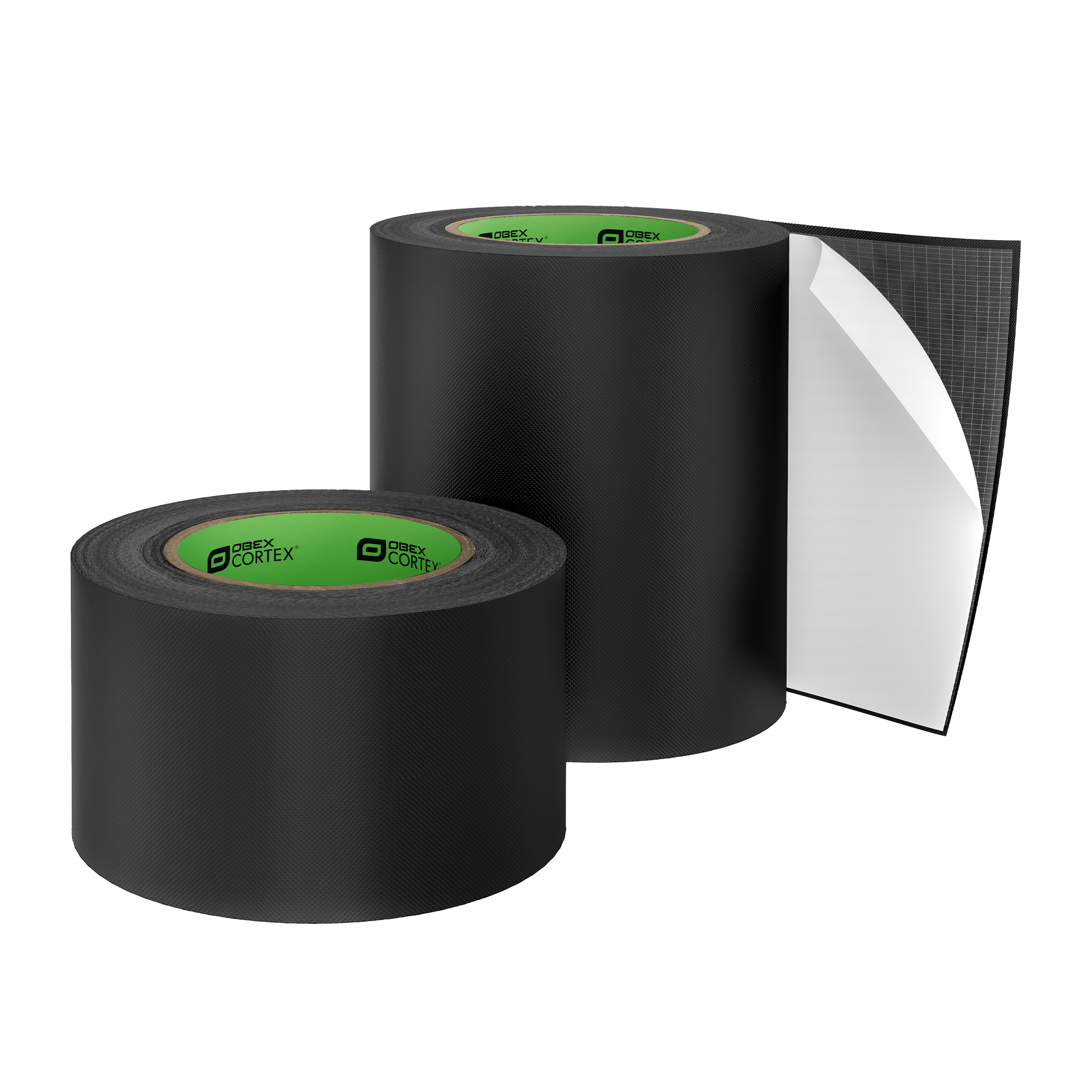

Self Adhesive EPDM Membrane
Class E - EN 13501-1
A Self Adhesive EPDM Membrane is used to create water and airtight seals around openings such as windows, doors and SFS sections on construction projects. It has excellent water resistance properties and is BBA approved for façade applications. Read More
-
3rd Party CertifiedRequest Technical Data -
EN 1928 - EN 13984
BBA Agrément Certificate 175396
OBEX CORTEX 0860 Self-Adhesive EPDM Membrane – Class E | TDS
OBEX CORTEX 0860 Self-Adhesive EPDM Membrane – Class E | DoP
OBEX CORTEX 0860 Self-Adhesive EPDM Membrane – Class E | SDS
OBEX CORTEX 0860 Self-Adhesive EPDM Membrane – Class E | Installation Guide
Typical Details Register
OBEX CORTEX 0860 Self-Adhesive EPDM Membrane is used to create water and airtight seals around openings such as windows, doors and SFS sections on construction projects. It has excellent water resistance properties and is BBA approved for façade applications.

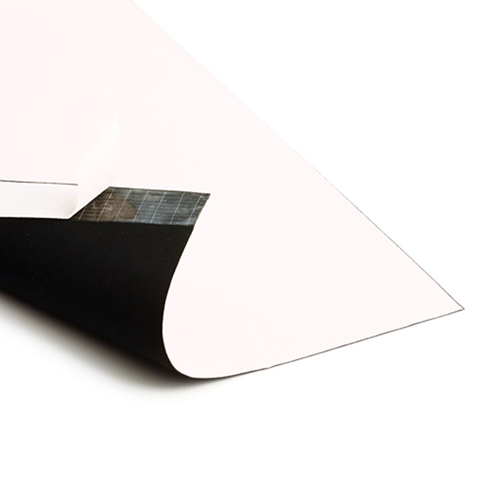

CORTEX 0860 EPDM can be supplied with a split in the release liner to ease installation. We offer many different permutations such as opposite sides, a single adhesive strip, fully adhesive backed, etc.
The use of CORTEX EPDM is limited under the England and Wales building regulations. Refer to the OBEX Technical team for further details.
Typical uses
- Weather & airtight seals around windows, doors and curtain walling systems
- Weather & airtight seals from SFS unit sections to the concrete frame
- Top of parapet walls
- Balcony waterproofing
Widths
50mm - 500mm
Length
20m per roll
Thickness
0.75mm
Adhesive carrier
Polyester scrim
Adhesive system
Acrylic dispersion
Release liner
Silicone-coated paper, brown
Peel adhesion
> 30N/25mm (DIN EN 1939)
Processing temperature
+5°C recommended, processable from -10°C
Temperature resistance
-30°C to +100°C
Tack
Excellent
Condensation water resistance
High
Ageing resistance
Very high
